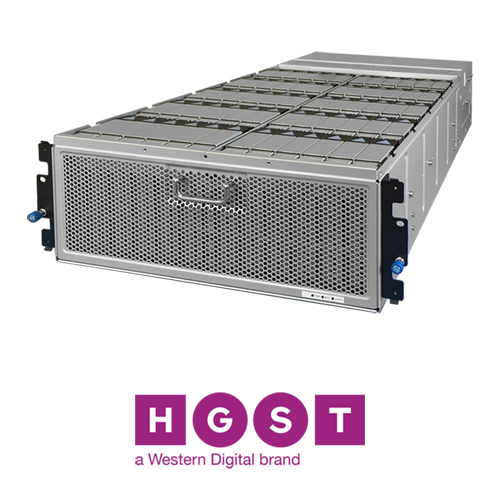

4U60G2 Storage Platform

  • High Density – Up to 720TB* in a 4U enclosure
  • Scalable – Supports 8 hosts per platform
  • Enterprise-class Serviceability – Hot-swappable components, cable management arm

4U60 Storage Enclosure

  • 4U enclosure – Includes up to 60 Ultrastar® 3.5-inch drive modules
  • Storage density – Up to 600TB capacity
  • Hot-swappable components – Power, drive and I/O modules
  • Fully compliant with SAS 3.0 specification for operation up to 12Gbps
  • Cable management arm simplifies maintenance of hot-swappable CRUs
  • SCSI Enclosure Services (SES-3)

When data centers need storage expansion that delivers low power and high capacity with high-availability, they rely on the HGST 4U60 Storage Enclosure. This high-density, scalable, and cost-effective design Includes up to 60 Ultrastar® 3.5-inch drive modules in a 4U enclosure and offers 2x2x4-lane SAS 12Gb/s performance, high availability (HA), and hot-swappable components. Optimized to provide a dense solution with HA capabilities, while maintaining a low power profile, you can trust the 4U60 Storage Enclosure to deliver the value you need for your data center.

This integrated platform is qualified, tested and certified to support a broad range of HGST HDDs. It's available with SAS drives for high-availability (HA) applications, with SATA drives for cost-optimized applications, and can be configured with up to twelve (12) 800GB SSDs to create separate performance tiers within the platform.

4U60G2
4U60
General
Host Connections
8 x 12Gbps SAS (4 per IOM)
4 x 12GBps SAS (2 per IOM)
Capacity / Physical Size
Capacity (minimum)
144TB with 6TB drive modules
96TB with 4TB drive modules
Capacity (maximum)
720TB with 12TB drive modules
600TB with 10TB drive modules
Dimensions (Enclosure)
174.8mm x 424mm x 881mm / 6.88in. x 16.69in. x 34.7in.
174.8mm x 424mm x 881mm / 6.88in. x 16.69in. x 34.7in.
Dimensions (Enclosure with CMAs)
174.8mm x 424mm x 1110mm / 6.88in. x 16.69in. x 43.7in.
174.8mm x 424mm x 983mm / 6.88in. x 16.69in. x 38.7in.
Weight
89.81 kg (198 lbs.) – fully configured with 60 helium drive modules
93.71 kg (208 lbs) – fully configured with 60 air drive modules
89.81 kg (198 lbs.) – fully configured with 60 helium drive modules
93.71 kg (208 lbs) – fully configured with 60 air drive modules
Power and Cooling: Operating
Power Supply
Two 1,650W PSUs, hot swap and redundant
Two 1,650W PSUs, hot swap and redundant
Input Voltage
200-240VAC auto-ranging, 47Hz-63Hz input (high line power only)
200-240VAC auto-ranging, 47Hz-63Hz input (high line power only)
Cooling Fans
N+1 redundant fans (fans integrated in PSU)
N+1 redundant fans (fans integrated in PSU)
Environmental (operating)
Temperature Range
5° to 35°C
5° to 35°C
Humidity
8% to 80% (non-condensing)
8% to 80% (non-condensing)
Shock
3.5g 6ms Pulse vertical shock
3.5g 6ms Pulse vertical shock
Vibration
Random 0.25 Grms, 5-10Hz, 0.05 g sine wave sweep, 10-300Hz
Random 0.25 Grms, 5-10Hz, 0.05 g sine wave sweep, 10-300Hz
Acoustics
<7.5dB LwA @ 23ºC
<7.5dB LwA @ 23ºC
Environmental (non-operating)
Temperature Range
-30° to 60°C
-30° to 60°C
Humidity
8% to 80% (non-condensing)
8% to 80% (non-condensing)
Shock
8g 6ms Trapezoidal
8g 6ms Trapezoidal
Vibration
Random 0.6 Grms 10-300Hz

Random 0.6 Grms 10-300Hz

Features

  • Up to 60 integrated Ultrastar® drive modules
    • 4U60G2: available capacities include 12TB, 10TB, 8TB, and 6TB
    • 4U60: available capacities include 10TB, 8TB, 6TB and 4TB
  • Hybrid capability: can be configured with SSDs to create separate performance tiers within the platform
  • Available with SAS drives for HA application or with SATA drives for cost-optimized applications
  • Available with 512e or 4Kn sector size (by part number)
  • Supports up to 4 storage enclosures for daisy-chaining*
  • Host connectivity:
    • 4U60G2: 4 x HD Mini-SAS ports per IO Module
    • 4U60G2: 2 x QSFP+ per IO Module
  • Fully compliant with 12Gb/s SAS 3 interconnect
  • Hot Swappable: two power supplies (with integrated fans), drive modules, and IO modules
  • Cable Management Arm (CMA) eliminates tangled cables during servicing of hot-swappable CRUs
  • SCSI Enclosure Services (SES-3)
  • Microsoft certified for Windows Server 2012, 2012R2
  • 5-year limited warranty

Fully Populated SAS

Capacity Interface Sector Size SE ISE SED Description
720TB SAS 4KN 1ES0216 1ES0215 1ES0217 4U60-60 G2 720TB nTAA
SAS 512E 1ES0213 1ES0212 1ES0214 4U60-60 G2 720TB nTAA
600TB SAS 4KN 1ES0168 1ES0161 1ES0169 4U60-60 G2 600TB nTAA
SAS 4KN 1ES0096 1ES0094 1ES0095 4U60-60 G1 600TB nTAA
SAS 512E 1ES0166 1ES0162 1ES0167 4U60-60 G2 600TB nTAA
SAS 512E 1ES0093 1ES0091 1ES0092 4U60-60 G1 600TB nTAA
SATA 4KN 1ES0145 1ES0144 1ES0146 4U60-60 G1 600TB nTAA SNGL ESM
SATA 512E 1ES0142 1ES0141 1ES0143 4U60-60 G1 600TB nTAA SNGL ESM
480TB SAS 4KN 1ES0204 1ES0203 1ES0205 4U60-60 G2 480TB nTAA
SAS 4KN 1ES0033 1ES0035 1ES0151 4U60-60 G1 480TB nTAA
SAS 512E 1ES0201 1ES0200 1ES0202 4U60-60 G2 480TB nTAA
SAS 512E 1ES0031 1ES0034 1ES0063 4U60-60 G1 480TB nTAA
SATA 4KN 1ES0083 1ES0082 1ES0084 4U60-60 G1 480TB nTAA
SATA 4KN 1ES01425 1ES0124 1ES0126 4U60-60 G1 480TB nTAA SNGL ESM
SATA 512E 1ES0080 1ES0079 1ES0081 4U60-60 G1 480TB nTAA
SATA 512E 1ES0122 1ES0121 1ES0123 4U60-60 G1 480TB nTAA SNGL ESM
360TB SAS 4KN 1ES0198 1ES0197 1ES0199 4U60-60 G2 360TB nTAA
SAS 4KN 1ES0060 1ES0061 - 4U60-60 G1 360TB nTAA
SAS 512E 1ES0195 1ES0194 1ES0196 4U60-60 G2 360TB nTAA
SAS 512E 1ES0058 1ES0059 1ES0068 4U60-60 G1 360TB nTAA
240TB SAS 4KN 1ES0056 1ES0057 - 4U60-60 G1 240TB nTAA
SAS 512E 1ES0054 1ES0055 1ES0067 4U60-60 G1 240TB nTAA

Partial Populated Configurations

Capacity Interface Sector Size SE ISE SED Description
288TB SAS 4KN 1ES0210 1ES0209 1ES0211 Storage Enclosure 4U60-24 G2 288TB nTAA
SAS 512E 1ES0207 1ES0206 1ES0208 Storage Enclosure 4U60-24 G2 288TB nTAA
240TB SAS 4KN 1ES0174 1ES0173 1ES0175 Storage Enclosure 4U60-24 G2 240TB nTAA
SAS 4KN 1ES0120 N/A N/A Storage Enclosure 4U60-24 G1 240TB nTAA
SAS 512E 1ES0171 1ES0170 1ES0172 Storage Enclosure 4U60-24 G2 240TB nTAA
SAS 512E 1ES0119 1ES0118 N/A Storage Enclosure 4U60-24 G1 240TB nTAA
192TB SAS 4KN 1ES0183 1ES0159 1ES0184 Storage Enclosure 4U60-24 G2 192TB nTAA
SAS 4KN N/A N/A N/A Storage Enclosure 4U60-24 G1 192TB nTAA
SAS 512E 1ES0181 1ES0160 1ES0182 Storage Enclosure 4U60-24 G2 192TB nTAA
SAS 512E 1ES0117 1ES0100 N/A Storage Enclosure 4U60-24 G1 192TB nTAA
144TB SAS 4KN 1ES0187 1ES0186 1ES0188 Storage Enclosure 4U60-24 G2 144TB nTAA
SAS 4KN N/A N/A N/A Storage Enclosure 4U60-24 G1 144TB nTAA
SAS 512E 1ES0192 1ES0158 1ES0185 Storage Enclosure 4U60-24 G2 144TB nTAA
SAS 512E 1ES0101 1ES0102 N/A Storage Enclosure 4U60-24 G1 144TB nTAA
96TB SAS 4KN N/A N/A N/A Storage Enclosure 4U60-24 G1 96TB nTAA
SAS 512E 1ES0103 1ES0104 N/A Storage Enclosure 4U60-24 G1 96TB nTAA

Scale-Up SAS Modules

Capacity Interface Sector Size SE ISE SED Description
144TB SAS 4KN 1EX0361 1EX0360 1EX0362 Storage Enclosure 4U60 ScaleUp Module 144TB nTAA
SAS 512E 1EX0358 1EX0357 1EX0359 Storage Enclosure 4U60 ScaleUp Module 144TB nTAA
120TB SAS 4KN 1EX0298 1EX0297 1EX0299 Storage Enclosure 4U60 ScaleUp Module 120TB nTAA
SAS 512E 1EX0295 1EX0294 1EX0296 Storage Enclosure 4U60 ScaleUp Module 120TB nTAA
96TB SAS 4KN 1EX0313 1EX0312 1EX0314 Storage Enclosure 4U60 ScaleUp Module 96TB nTAA
SAS 512E 1EX0310 1EX0309 1EX0311 Storage Enclosure 4U60 ScaleUp Module 96TB nTAA
72TB SAS 4KN 1EX0324 1EX0323 1EX0325 Storage Enclosure 4U60 ScaleUp Module 72TB nTAA
SAS 512E 1EX0320 1EX0321 1EX0322 Storage Enclosure 4U60 ScaleUp Module 72TB nTAA

Customer Replacable Units (CRU): Drive

Capacity Interface Sector Size SE ISE SED Description
12TB SAS 4KN 1EX0349 1EX0348 1EX0350 Storage Enclosure 4U60 G2 CRU HE12 Drive w/Carrier 12TB
SAS 4KN 1EX0355 1EX0354 1EX0356 Storage Enclosure 4U60 G2 CRU HE12 Drive w/Carrier 12TB 12Pack
SAS 512E 1EX0346 1EX0345 1EX0347 Storage Enclosure 4U60 G2 CRU HE12 Drive w/Carrier 12TB
SAS 512E 1EX0352 1EX0351 1EX0353 Storage Enclosure 4U60 G2 CRU HE12 Drive w/Carrier 12TB 12Pack
10TB SAS 4KN 1EX0147 1EX0145 1EX0146 Storage Enclosure 4U60 CRU HE10 Drive w/Carrier 10TB
SAS 4KN 1EX0199 1EX0292 1EX0293 Storage Enclosure 4U60 CRU HE10 Drive w/Carrier 10TB 12Pack
SAS 512E 1EX0144 1EX0142 1EX0143 Storage Enclosure 4U60 CRU HE10 Drive w/Carrier 10TB
SAS 512E 1EX0182 1EX0181 1EX0291 Storage Enclosure 4U60 CRU HE10 Drive w/Carrier 10TB 12Pack
SATA 4KN 1EX0214 1EX0213 1EX0215 Storage Enclosure 4U60 CRU HE10 Drive w/Carrier 10TB
SATA 4KN N/A N/A N/A Storage Enclosure 4U60 CRU HE10 Drive w/Carrier 10TB 12Pack
SATA 512E 1EX0211 1EX0210 1EX0212 Storage Enclosure 4U60 CRU HE10 Drive w/Carrier 10TB
SATA 512E N/A N/A N/A Storage Enclosure 4U60 CRU HE10 Drive w/Carrier 10TB 12Pack
8TB SAS 4KN 1EX0302 1EX0277 1EX0247 Storage Enclosure 4U60 CRU HE10 Drive w/Carrier 8TB
SAS 4KN 1EX0109 1EX0111 1EX0152 Storage Enclosure 4U60 G1 CRU HC8 Drive w/Carrier 8TB
SAS 4KN 1EX0307 1EX0306 1EX0308 Storage Enclosure 4U60 CRU HE10 Drive w/Carrier 8TB 12Pack
SAS 512E 1EX0300 1EX0278 1EX0301 Storage Enclosure 4U60 CRU HE10 Drive w/Carrier 8TB
SAS 512E 1EX0083 1EX0110 1EX0123 Storage Enclosure 4U60 G1 CRU HC8 Drive w/Carrier 8TB
SAS 512E 1EX0171 1EX0172 N/A Storage Enclosure 4U60 G1 CRU HC8 Drive w/Carrier 8TB 12Pack
SAS 512E 1EX0304 1EX0303 1EX0305 Storage Enclosure 4U60 CRU HE10 Drive w/Carrier 8TB 12Pack
SATA 4KN 1EX0204 1EX0203 1EX0205 Storage Enclosure 4U60 CRU HE10 Drive w/Carrier 8TB
SATA 4KN 1EX0133 1EX0132 1EX0134 Storage Enclosure 4U60 G1 CRU HC8 Drive w/Carrier 8TB
SATA 4KN N/A N/A N/A Storage Enclosure 4U60 CRU HE10 Drive w/Carrier 8TB 12Pack
SATA 512E 1EX0201 1EX0200 1EX0202 Storage Enclosure 4U60 CRU HE10 Drive w/Carrier 8TB
SATA 512E 1EX0130 1EX0129 1EX0131 Storage Enclosure 4U60 G1 CRU HC8 Drive w/Carrier 8TB
SATA 512E N/A N/A N/A Storage Enclosure 4U60 CRU HE10 Drive w/Carrier 8TB 12Pack
6TB SAS 4KN 1EX0121 1EX0122 1EX0315 Storage Enclosure 4U60 CRU KP6 Drive w/Carrier 6TB
SAS 4KN 1EX0318 1EX0317 1EX0319 Storage Enclosure 4U60 CRU KP6 Drive w/Carrier 6TB 12Pack
SAS 512E 1EX0119 1EX0120 1EX0126 Storage Enclosure 4U60 CRU KP6 Drive w/Carrier 6TB
SAS 512E 1EX0177 1EX0178 1EX0316 Storage Enclosure 4U60 CRU KP6 Drive w/Carrier 6TB 12Pack
4TB SAS 4KN 1EX0117 1EX0118 N/A Storage Enclosure 4U60 G1 CRU KP4 Drive w/Carrier 4TB
SAS 4KN N/A N/A N/A Storage Enclosure 4U60 G1 CRU KP4 Drive w/Carrier 4TB 12Pack
SAS 512E 1EX0115 1EX0116 1EX0125 Storage Enclosure 4U60 G1 CRU KP4 Drive w/Carrier 4TB
SAS 512E 1EX0179 1EX0180 N/A Storage Enclosure 4U60 G1 CRU KP4 Drive w/Carrier 4TB 12Pack
SSD SATA 1EX0153 N/A N/A Storage Enclosure 4U60 CRU CS SSD Drive w/Carrier 800GB
SAS N/A 1EX0154 N/A Storage Enclosure 4U60 CRU ASCD SSD Drive w/Carrier 400GB

Cables

P/N Description
1EX0094 Storage Enclosure 4U60 G1 CRU Cable Expansion QSFP+ to QSFP+ 2m
1EX0149 Storage Enclosure 4U60 G1 CRU Cable Expansion QSFP+ to QSFP+ 2m 2Pack
1EX0234 Storage Enclosure 4U60 G1 CRU Cable Expansion QSFP+ to QSFP+ 3m
1EX0151 Storage Enclosure 4U60 G1 CRU Cable Expansion QSFP+ to QSFP+ 3m 2Pack
1EX0085 Storage Enclosure 4U60 G1 CRU Cable IO miniSAS to QSFP+ 2m
1EX0148 Storage Enclosure 4U60 G1 CRU Cable IO miniSAS to QSFP+ 2m 2Pack
1EX0233 Storage Enclosure 4U60 G1 CRU Cable IO miniSAS to QSFP+ 3m
1EX0150 Storage Enclosure 4U60 G1 CRU Cable IO miniSAS to QSFP+ 3m 2Pack
1EX0328 Storage Enclosure 4U60 G2 CRU Cable IO HD mini-SAS to HD mini-SAS 2m 2Pack
1EX0329 Storage Enclosure 4U60 G2 CRU Cable IO HD mini-SAS to HD mini-SAS 3m 2Pack

Miscellaneous

P/N Description
1EX0107 Storage Enclosure 4U60 G1 CRU Cable Management Arm
1EX0327 Storage Enclosure 4U60 G2 CRU Cable Management Arm
1EX0108 Storage Enclosure 4U60 CRU Drive Carrier Blank
1EX0174 Storage Enclosure 4U60 CRU Drive Carrier w/Screws
1EX0080 Storage Enclosure 4U60 G1 CRU IO Module
1EX0326 Storage Enclosure 4U60 G2 CRU IO Module
1EX0084 Storage Enclosure 4U60 CRU Power Cord
1EX0081 Storage Enclosure 4U60 CRU Power Supply
1EX0106 Storage Enclosure 4U60 CRU Rail Kit Adjustable
1EX0196 Storage Enclosure 4U60-0 G1 CRU Chassis ESM/PSU ASM
1EX0197 Storage Enclosure 4U60-0 G1 CRU Chassis SNGL ESM/PSU ASM
1EX0330 Storage Enclosure 4U60-0 G2 CRU Chassis ESM/PSU ASM
1EX0331 Storage Enclosure 4U60-0 G2 CRU Chassis SNGL ESM/PSU ASM
