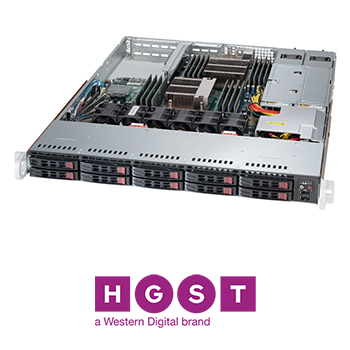

RL1101-X2-R 1U Server

RL1101-X2-R

  • Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3 family; QPI up to 9.6GT/s
  • 16x DIMM slots
  • Up to 1TB ECC DDR4 2133MHz
  • 2x PCI-E 3.0 x16 (FHHL)
  • 1x PCI-E 3.0 x8 Mezzanine for HBA cards
  • 10x Hot-swap 2.5" SAS/SATA HDD bays
  • Intel® i350 Dual port GbE LAN
  • I/O ports: 2x SuperDOM, 1x VGA, 1x COM, 6x USB 3.0 (4 rear, 2 front)
  • 2x SuperDOM (Disk on Module) ports
  • 700W Redundant Power Supplies Platinum Level High-efficiency

Processor/Cache
CPU
Intel® Xeon® processor E5-2600 v3/v4 family (up to 145W TDP) *
Dual Socket R3 (LGA 2011)
Cores / Cache
Up to 18 Cores / Up to 45MB Cache
System Bus
QPI up to 9.6 GT/s
Note
* Please contact Racklive's Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
System Memory
Memory Capacity
16x 288-pin DDR4 DIMM slots
Up to 1TB ECC LRDIMM, 512GB ECC RDIMM
Memory Type
2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
RDIMM: 64GB, 16GB, 8GB, 4GB
LRDIMM: 64GB, 32GB
Memory Voltage
1.2 V
Error Detection
Corrects single-bit errors
On-Board Devices
Chipset
Intel® C612 chipset
SATA
SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC
Network Controllers
Intel® i350 Dual Port Gigabit Ethernet Controller
Virtual Machine Device Queues reduce I/O overhead
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8211E PHY (dedicated IPMI)
Graphics
ASPEED AST2400 BMC
I/O
Serial ATA
10x SATA3 (6Gbps) ports
LAN
2x RJ45 Gigabit Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
USB
6x USB 3.0 ports (4 rear + 2 via header)
Video
1x VGA port
Serial Port / Header
1x Fast UART 16550 header
DOM
2x SuperDOM (Disk on Module) ports
Dimension and Weight
Width
17.2"" (437mm)
Height
1.7"" (43mm)
Depth
23.5"" (597mm)
Gross Weight
46 lbs (20.9kg)
Available Colors
Black
Front Panel
Buttons
Power On/Off button
UID button
LEDs
Power status LED
HDD activity LED
2x Network activity LEDs
Universal Information (UID) LED
Expansion Slots
PCI-Express
2x PCI-E 3.0 x16 full-height, Half-length slots
Drive Bay
Hot-swap
10x Hot-swap 2.5"" SAS / SATA HDD trays (connected to onboard storage controller)
System Cooling
Fans
5x 4cm heavy-duty counter-rotating fans w/ air shroud and optimal fan speed control
Power Supply
AC Voltage
700W/750W Redundant AC-DC high-efficiency power supply with PMBus and I2C
700W: 100 - 140 V, 50-60 Hz
750W: 200 - 240V, 50-60 Hz
DC Output +5V standby
3 Amp
DC Output +12V
700W: 58 Amp @ 100-140V
System Bios
BIOS Type
128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
Plug and Play (PnP)
APM 1.2
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
SMBIOS 2.7.1
UEFI 2.3.1
Operating Enviroment
RoHS
RoHS Compliant
Environmental Specs
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
