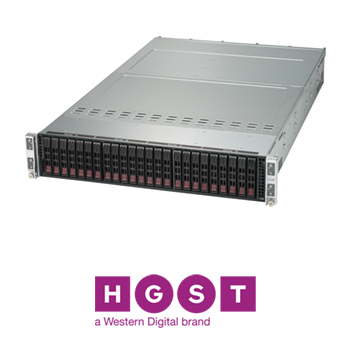

RL2416-X2-R

  • Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3 family; QPI up to 9.6GT/s
  • 16x DDR4 DIMM slots
  • Up to 1TB ECC LRDIMM, 512GB ECC RDIMM
  • Intel® i350-AM2 Dual port GbE LAN
  • Integrated IPMI 2.0 with KVM and Dedicated LAN
  • 6x 2.5" Hot-swap SATA HDD Bays
  • 1x PCI-E 3.0 x16 Low-profile slot and 1x "0 slot"
  • 2000W Redundant Power Supplies Titanium Level (96%)

Processor/Cache
CPU
Intel® Xeon® processor E5-2600 v3/v4 family (up to 145W TDP) *
Dual Socket R3 (LGA 2011)
Cores / Cache
Up to 18 Cores / Up to 45MB Cache
System Bus
QPI up to 9.6 GT/s
Note
* Please contact Racklive's Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
System Memory
Memory Capacity
16x 288-pin DDR4 DIMM slots
Up to 1TB ECC LRDIMM, 512GB ECC RDIMM
Memory Type
2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
RDIMM: 32GB, 16GB, 8GB, 4GB
LRDIMM: 64GB, 32GB
Memory Voltage
1.2 V
Error Detection
Corrects single-bit errors
On-Board Devices
Chipset
Intel® C612 chipset
SATA
SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC
Network Controllers
Intel® i350-AM2 Dual Port Gigabit Ethernet
Virtual Machine Device Queues reduce I/O overhead
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics
ASPEED AST2400 BMC
I/O
SATA
6x SATA3 (6Gbps) ports
LAN
2x RJ45 Gigabit Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
USB
2x USB 3.0 ports total (2x rear)
VGA
1x VGA port
Serial Port / Header
1x Fast UART 16550 port / 1 Header (internal)
Others
1x SATADOM support on the motherboard
Dimension and Weight
Width
17.25"" (438mm)
Height
3.47"" (88mm)
Depth
28.75"" (730mm)
Weight
Gross Weight: 90 lbs (40.9kg)
Net Weight: 72 lbs (32.7 kg)
Available Colors
Black
Front Panel
Buttons
Power On/Off button
UID button
LEDs
Power status LED
HDD activity LED
2x Network activity LEDs
Universal Information (UID) LED
Expansion Slots
PCI-Express
1x PCI-E 3.0 x16 Low-profile slot
Drive Bay
Hot-swap
6x 2.5"" Hot-swap SAS/SATA HDD trays
System Cooling
Fans
4x 8cm heavy duty PWM fans with optimal fan speed control
Power Supply
Total Output Power
2000W Titanium Level (96%) High-efficiency Redundant Power Supplies
1000W/1800W/1980W/2000W
AC Input
100-127 V, 50-60 Hz
200-220 V, 50-60 Hz
220-230 V, 50-60 Hz
230-240 V, 50-60 Hz
+12V
Max: 83.3A & Min: 0A (100Vac-127Vac)
Max: 150A & Min: 0A (200Vac-220Vac)
Max: 165A & Min: 0A (220Vac-230Vac)
Max: 166.7A & Min: 0A (230Vac-240Vac)
5V SB
Max: 1A / Min: 0A
System Bios
BIOS Type
128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
Plug and Play (PnP)
APM 1.2
PCI 2.2
ACPI 1.0 / 2.0
USB Keyboard support
SMBIOS 2.3
UEFI
Operating Enviroment
RoHS
RoHS Compliant
Environmental Specs
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
