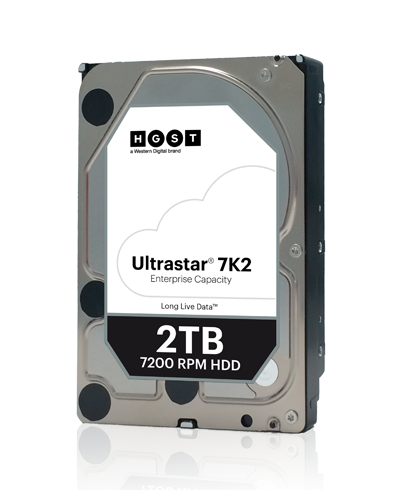

Ultrastar 7K2

  • 2TB & 1TB
  • 3.5-inch
  • Enterprise Hard Drive

  • High Capacity – Up to 2TB
  • Built for the Enterprise – Robust mechanical design
  • Legacy Compatibility – SATA with native 512 block size format

Data centers face growing pressures to store more with flat-to-shrinking budgets. Keeping systems operational for as long as possible to maximize investments can be an effective part of the strategy, but supporting those legacy applications becomes even more challenging as drive technologies move to next generation formats and interfaces. Ultrastar 7K2 has a SATA 6Gb/s interface and native 512-byte (512n) sector size to provide consistent, high performance and compatibility with legacy data center applications. Enhanced RAFF™ technology in the 7K2 includes sophisticated electronics to monitor the drive and correct both linear and rotational vibration disturbances in real time—especially helpful in multi-drive arrays and rack-mounted systems maintaining high read/write performance. Designed to handle workloads up to 550TB per year, the Ultrastar 7K2 delivers up to 2TB of affordable storage capacity for high-intensity applications in enterprise-class environments.

General
Model # / Part #
HUS722T2TALA604 / 1W10002
HUS722T1TALA604 / 1W10001
Interface
SATA 6Gb/s
Capacity (GB)
2TB / 1TB
Sector Size (Variable, Bytes/sector)
512 native (512n)
Max Areal Density (Gbits/sq. in.)
638
Performance
Data Buffer (MB)
128
Rotational Speed (RPM)
7200
Latency Average (ms)
4.2
Interface Transfer Rate (MB/sec, max)
600
Sustained Transfer Rate (MB/sec, typ.)
MB/s: 200 (2TB)/184 (1TB); MiB/s: 191 (2TB)/175 (1TB)
Seek Time (read, ms, typical)
7.7 / 8.3
Reliability
Error Rate (non-recoverable, bits read)
1 in 1015
MTBF (M hours)
2.0
Annual Failure Rate (AFR)
0.44%
Load/Unload Cycles
600,000
Availability (hrs/day x days/wk)
24x7
Reliability - Warranty (yrs)
5
Acoustics
Idle (Bels)
2.5 / 2.8
Power
Requirement
+5V, +12V
Operating (W, typical)
8.1
Idle (W)
5.9
Power Consump. Efficiency Index (W/GB)
2.95W/TB (2TB) / 5.9W/TB (1TB)
Physical Size
Z-Height (mm)
26.1
Dimensions (width x depth, mm)
101.6 (+/-0.25) x 147 (max)
Weight (g, typical)
640 (+/-10%)
Environmental (operating)
Ambient Temperature
5° to 60° C
Shock (half-sine wave)
65G (2 ms)
Vibration (G RMS, 10 to 300 Hz)
1.08 (XYZ)
Environmental (non-operating)
Ambient Temperature
-40° to 70° C
Shock (half-sine wave)
300G (2ms)
Random Vibration (G RMS, 10 to 300 Hz)
3.8 (XYZ)

Highlights

  • Up to 2TB capacity in a standard 3.5-inch form factor
  • Enhanced RAFF™ anti-vibration technology for robust performance in multi-drive environments
  • Reliable, field-proven design
  • SATA 6Gb/s with 512-byte (512n) supports legacy enterprise applications
  • 2M hours MTBF rating & 5-year limited warranty

Applications/Environments

  • RAID arrays
  • Massive scale-out (MSO) data centers
  • Data warehousing & mining
  • Cloud storage
  • Enterprise NAS
  • Disk-to-disk backup & archiving
  • Legacy mainstream enterprise capacity applications that require 512n block size
