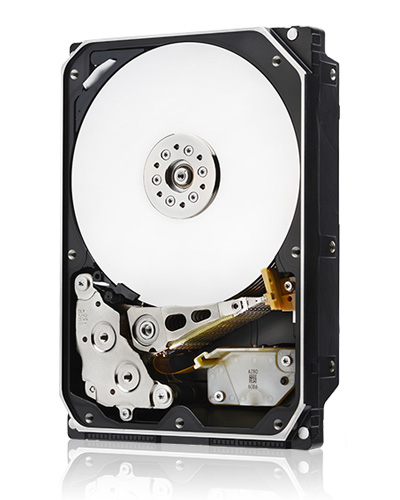

Ultrastar He10

  • 10TB & 8TB
  • 3.5-inch Helium Platform
  • Enterprise Hard Drive

  • Highest Capacity – 10TB HDD, drop-in ready for mainstream enterprise
  • Lowest Power – 56% more efficient than air-filled drives for lower TCO
  • Most Reliable – Best-in-class reliability rating of 2.5M hours MTBF

Providing basics for a worry-free data center, Ultrastar He10 is the best capacity hard drive in the industry delivered by HGST. Using PMR technology, He10 is the industry’s first 10TB drive that is turn-up ready for any enterprise-capacity application. It offers the lowest power profile in the industry to help data center architects meet eco-environmental goals and requirements, depending on the field proven third generation HelioSeal® technology. Targeted at 2.5M hours MTBF, the He10 provides the highest reliability rating available of all HDDs on the market today by building on the successful design of its 8TB and 6TB predecessors. For the ability to deliver more capacity, more efficiency, more reliability and more value to your data center, entrust HGST and Ultrastar He10.

SATA Models
SAS Models
General
Model # / Part #
HUH721010ALE600 / 0F27452
HUH721008ALE600 / 0F27455
HUH721010ALN600 / 0F27502
HUH721008ALN600 / 0F27505
HUH721010ALE601 / 0F27453
HUH721008ALE601 / 0F27456
HUH721010ALN601 / 0F27503
HUH721008ALN601 / 0F27506
HUH721010ALE604 / 0F27454
HUH721008ALE604 / 0F27457
HUH721010ALN604 / 0F27504
HUH721008ALN604 / 0F27507
HUH721010AL4200 / 0F27402
HUH721008AL4200 / 0F27406
HUH721010AL5200 / 0F27352
HUH721008AL5200 / 0F27356
HUH721010AL4201 / 0F27403
HUH721008AL4201 / 0F27407
HUH721010AL5201 / 0F27353
HUH721008AL5201 / 0F27357
HUH721010AL4204 / 0F27404
HUH721008AL4204 / 0F27408
HUH721010AL5204 / 0F27354
HUH721008AL5204 / 0F27358
HUH721010AL4205 / 0F27405
HUH721008AL4205 / 0F27409
HUH721010AL5205 / 0F27355
HUH721008AL5205 / 0F27359
Interface
SATA 6Gb/s
SAS 12Gb/s
Capacity (GB)
10TB / 8TB
10TB / 8TB
Sector Size (Variable, Bytes/sector)
4Kn: 4096
512e: 512
4Kn: 4096, 4112, 4160, 4224
512e: 512, 520, 528
Max Areal Density (Gbits/sq. in.)
816 (10TB)
816 (10TB)
Performance
Data Buffer (MB)
256
256
Rotational Speed (RPM)
7200
7200
Latency Average (ms)
4.16
4.16
Interface Transfer Rate (MB/sec, max)
600
1200
Sustained Transfer Rate (MB/sec, typ.)
249MB/s (10TB) / 225MB/s (8TB)
237Mib/s (10TB) / 215Mib/s (8TB)
249MB/s (10TB) / 225MB/s (8TB)
237Mib/s (10TB) / 215Mib/s (8TB)
Seek Time (read, ms, typical)
8.0 (Read), 8.6 (Write)
8.0 (Read), 8.6 (Write)
Reliability
Error Rate (non-recoverable, bits read)
1 in 10^15
1 in 10^15
MTBF (M hours)
2.5
2.5
Annual Failure Rate (AFR)
0.35%
0.35%
Load/Unload Cycles
600,000
600,000
Availability (hrs/day x days/wk)
24x7
24x7
Reliability - Warranty (yrs)
5
5
Acoustics
Idle (Bels)
2.0 (Idle) / 3.6 (Operating)
2.0 (Idle) / 3.6 (Operating)
Power
Requirement
+5 VDC, +12VDC
+5 VDC, +12VDC
Operating (W, typical)
6.8
9.5
Idle (W)
5.0
5.8
Power Consump. Efficiency Index (W/GB)
0.50W/TB
0.00050W/GB
0.58W/TB
0.00058W/GB
Physical Size
Z-Height (mm)
26.1
26.1
Dimensions (width x depth, mm)
101.6 (+/-0.25) x 147
101.6 (+/-0.25) x 147
Weight (g, max)
660
660
Environmental (operating)
Ambient Temperature
5° to 60°C
5° to 60°C
Shock (half-sine wave)
70
70
Vibration (5 to 500 Hz)
0.67G RMS (XYZ)
0.67G RMS (XYZ)
Environmental (non-operating)
Ambient Temperature
-40° to 70°C
-40° to 70°C
Shock (half-sine wave)
300 (2ms) / 150 (11ms)
300 (2ms) / 150 (11ms)
Vibration (5 to 500 Hz)
1.04G RMS (XYZ)
1.04G RMS (XYZ)

Highlights

  • 10TB capacity in a standard 3.5-inch form factor
  • PMR technology works with all capacity enterprise applications & environments
  • Reliable, field-proven, 3rd generation design
  • Industry’s best power efficiency (Watts/TB)
  • Compared to 8TB air drives:
    • - 25% more capacity
    • - 56% more power efficient (Watts/TB)
    • - 25% more reliable
  • SATA 6Gb/s and SAS 12Gb/s:
    • - 12Gb/s SAS compatible with next gen data centers; backwards compatible with 6Gb/s SAS
  • 2.5M hours MTBF rating & 5-year limited warranty
  • Instant Secure Erase (ISE) & Self-Encrypting Drive (SED) options

Applications/Environments

  • Enterprise and data center applications where capacity density and power efficiency are paramount
  • Cloud & Hyperscale storage
  • Massive scale-out high-density data centers (MSO)
  • Bulk storage using object storage solutions like Ceph™ and Hadoop® to support Big Data Analytics
  • Centralized video surveillance
  • Drop-in ready for all mainstream enterprise capacity applications
