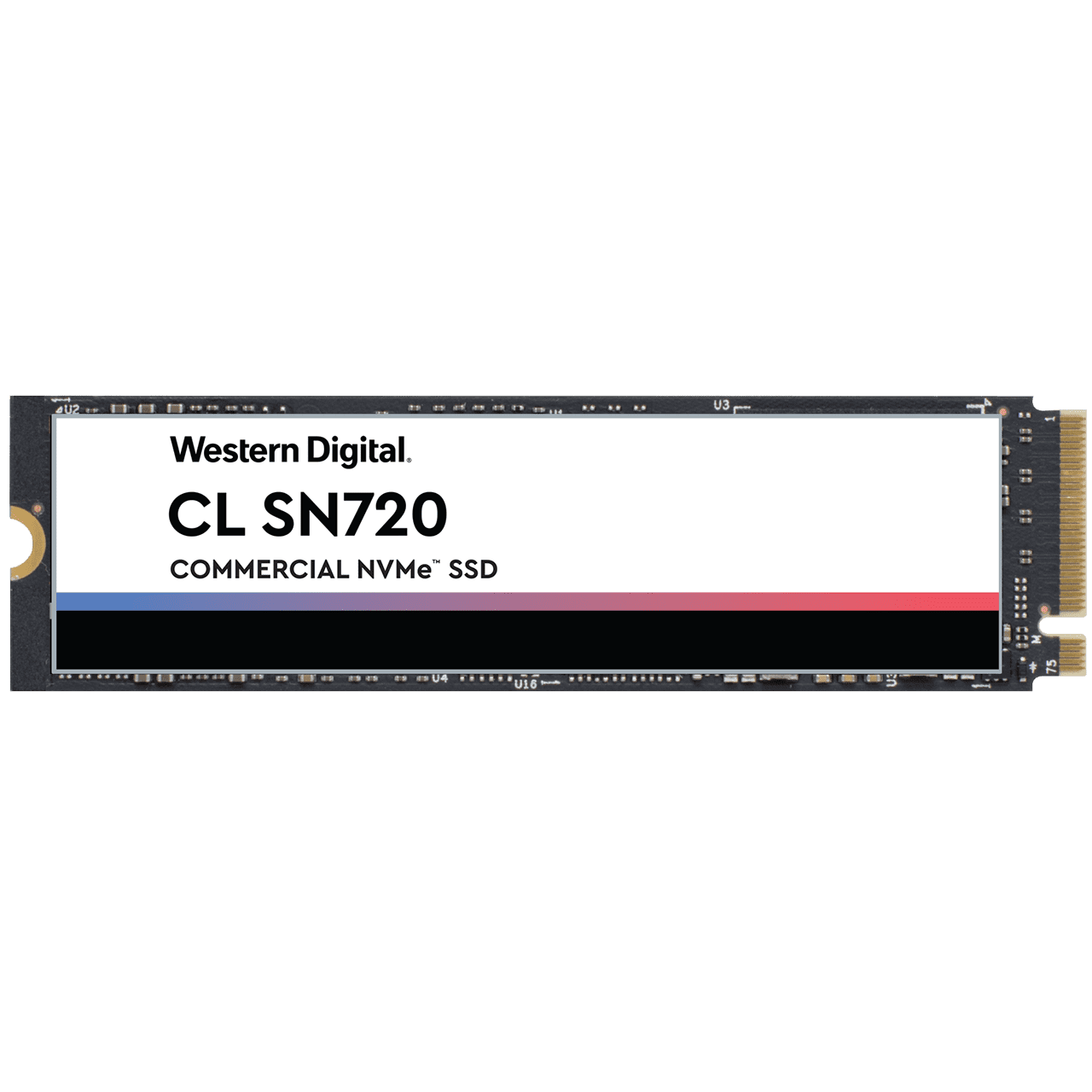

Western Digital CL SN720 NVMe SSD for Data Centers

  • Purpose-Built for Boot and Edge Computing Performance and Reliability
  • High Performance for Boot and Edge
  • Performance – 330,000 random read IOPS | 2,700 random write IOPS | 3,250 sequential read MiB/s | 1,400 sequential write MiB/s
  • Power Consumption – Avg. Max Read/Write 5.5W
  • Security – Instant Secure Erase (ISE), TCG Opal 2.01 Self Encrypting Drive (SED)



Reliable and High Performance for Read-Intensive Workloads

Edge Computing and operating system boot operations require high performance and reliable storage. Edge computing – content delivery (CDNs), online gaming content, IoT, data analytics – is heavy on data reads. Rapid operating systems boot performance is critical for public cloud services to quickly launch computing instances. Large-node compute clusters need rapid boot performance for boot times and rebooting.

Western Digital CL SN720 is a purpose-built NVMe M.2 form factor for the specific requirements of boot and edge workloads. Reliable read performance, power efficiency, data security standards support, and remote management ability are some of the key attributes.


Specification1
Form Factor
—
—
—
M.2 2280
Interface
—
—
—
PCIe Gen3 X4 NVMe v1.3
Formatted Capacity
—
—
—
256GB, 512GB, 1TB, 2TB3
Security
—
—
—
TCG OPAL 2.01
256GB
512GB
1TB
2TB
Performance4
Sequential Read, (max. MB/s, 64KiB, QD32)
up to 3,250
up to 3,250
up to 3,250
up to 3,250
Sequential Write, (max. MB/s, 64KiB, QD32)
up to 1,400
up to 1,400
up to 1,400
up to 1,400
Random Read (max IOPS, 4KiB, QD128)
up to 330K
up to 330K
up to 330K
up to 330K
Random Write (max IOPS, 4KiB QD4)
up to 2.7K
up to 2.7K
up to 2.7K
up to 2.7K
Mixed Random Read/Write (max IOPS 70%R/30%W, 4KiB, D128)
7K
7K
7K
7K
Latency (μs, 4KiB Random Read QD1, 99%)
0.1
0.1
0.1
0.1
Endurance (TBW)
—
—
—
—
256GB
512GB
1TB
2TB
Power
Peak Power (10μs)
2.8
2.8
2.8
2.8
Average Active Power (mW)
up to 140
up to 140
up to 140
up to 140
Low Power (PS3) (mW)
up to 100
up to 100
up to 100
up to 100
Sleep (PS4) (mW)
2.5
2.5
2.5
2.5
Supply Voltage (V / +-5%)
3.3
3.3
3.3
3.3
Reliability
MTTF
—
—
—
up to 2M hours
UBER
—
—
—
10-17
Environmental
Operating Temperature
—
—
—
0º to 85º C
Non-operating Temperature
—
—
—
-55º to 85º C
Certifications
—
—
—
FCC, UL, TUV, KCC, BSMI, VCCI, C-TICK
Limited Warranty
—
—
—
5 years
Physical Dimensions
Width
—
—
—
22mm ± 0.15mm
Length
—
—
—
80mm ± 0.15mm
Thickness (max)
—
—
—
2.38mm
Weight
—
—
—
7.5g ± 1g
Ordering Information
256GB
—
—
SDAQNTW-256G-2000
—
512GB
—
—
SDAQNTW-512G-2000
—
1TB
—
—
SDAQNTW-1T00-2000
—
2TB3
—
—
SDAQNTW-2T00-2000
—

Disclosures

1: Specifications below are base on 1TB capacity and vary by capacity. Contact Western Digital for further details. Product specifications subject to change without notice. Not all products are available in all regions of the world.
2: As used for storage coapacity, one gigabyte (GB) = one billion bytes and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environtment.
3: 2TB expected availability in early 2019.
4: Test Conditions: Sustained Performance is based on the FIO benchmark using a 1TB Western Digital CL SN720 NVMe SSD and a 10000MB LBA range ASUS Z170A desktop with Intel® i7-6700K 4.0GHz, 8GB 2133Mhz DDR4. Windows 10 64-bit using Microsoft StorNMVe driver, secondary drive. Performance may vary based on host device. 1 MB = 1,000,000 bytes. IOPS = input/output operations per second.
5: TBW (terabytes written) values calculated using JEDEC client workload (JESD219) and vary by product capacity.
6: Measured using MobileMark™ 2014 on HP EliteBook X360 1030 G2 with i7-7600U, 8GB RAM. Windows 10 Pro, 64-bit RS3 using Microsoft StorNVMe driver, primary drive.
7: Power measurements at 25oC.
8: MTTF = Mean Time To Failure based on internal testing and by using Telcordia stress part testing (Telecordia SR-332), GB, 40oC). MTTF is based on a sample population and is estimated by statistical measurements and acceleration algorithms. MTTF does not predict an individual drive's reliability and does not constitute a warranty.
9: Operational temperature as reported by device (composite temperature).
10: Non-operational storage temperature does not guarantee data retention.
11: 5 years or Max Endurance (TBW) limit, whichever occurs first. 5 year warranty in regions not recognizing "limited". See Western Digital Support



Highlights

  • M.2 2280 form factor (22mm x 80mm)
  • 5-year limited warranty, 2M MTTF
  • Remote Diagnostic Tools
  • BOM Controlled PCN Notification
  • 5.5W active power
  • High Resistance to Errors UBER 10-17

Applications and Workload

  • Content Delivery Networks (CDN)
  • Video Caching
  • Online/Internet Gaming
  • Industrial IoT, IoT
  • Operating System boot drives
