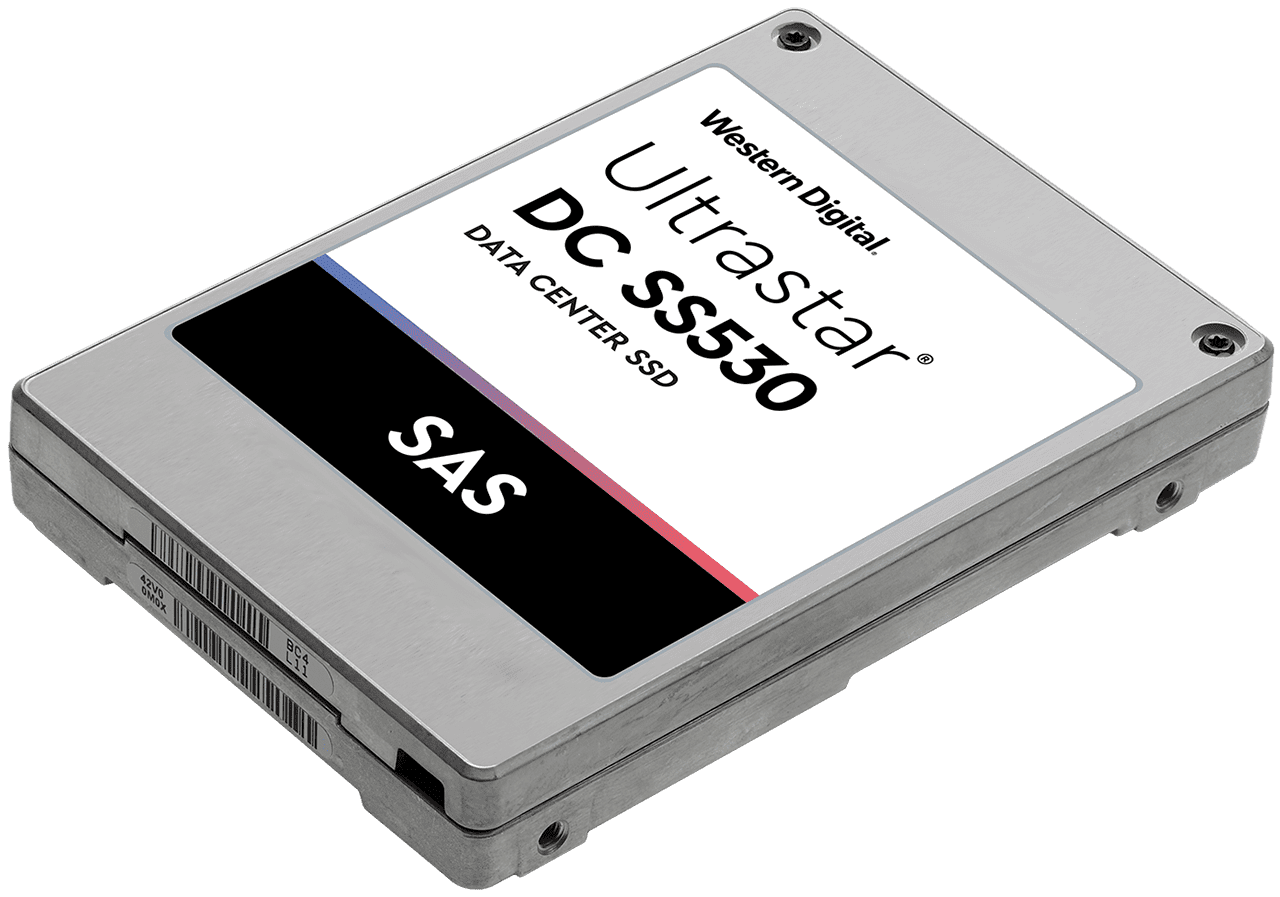

main-features-ultrastar-sas-western-digital

Ultrastar SAS Series

  • Scalability for Servers and Storage with Proven, Trusted Design
  • Scale with Confidence
  • Trusted Interface – Dual port 12 Gb/s SAS helps ensure reliable, fast access to data
  • Proven Reliability – Trusted in data centers worldwide, with unbeaten 2.5M hr MTBF
  • Security Options – Protect data with FIPS-validated, self-encrypting TCG models



Generations of Proven Designs Provide Reliable, Secure Data Center Scalability

As data centers and enterprises struggle to manage the growing abundance and availability of data, Western Digital delivers a portfolio of dual-port 12 Gb/s Serial Attached SCSI (SAS) SSDs with capacity, performance and endurance options to help address the challenges of data access. Ultrastar DC SS530, our newest SAS SSD, delivers up to 15.36TB, double the capacity of prior generations. Our Ultrastar SAS series includes three endurance options to meet the requirements of a full range of applications and workloads. Data security features include self-encrypting drives based on TCG enterprise standards and FIPS validation. Ultrastar SAS drives are trusted by major OEMs and leverage decades of proven enterprise storage expertise in firmware development, design, and reliability. Ultrastar builds on its strong tradition of leading-edge SAS SSD products to deliver more capacity and better performance, combined with a continued emphasis on reliability to create global scalable, high-availability servers, and storage systems where data can thrive.

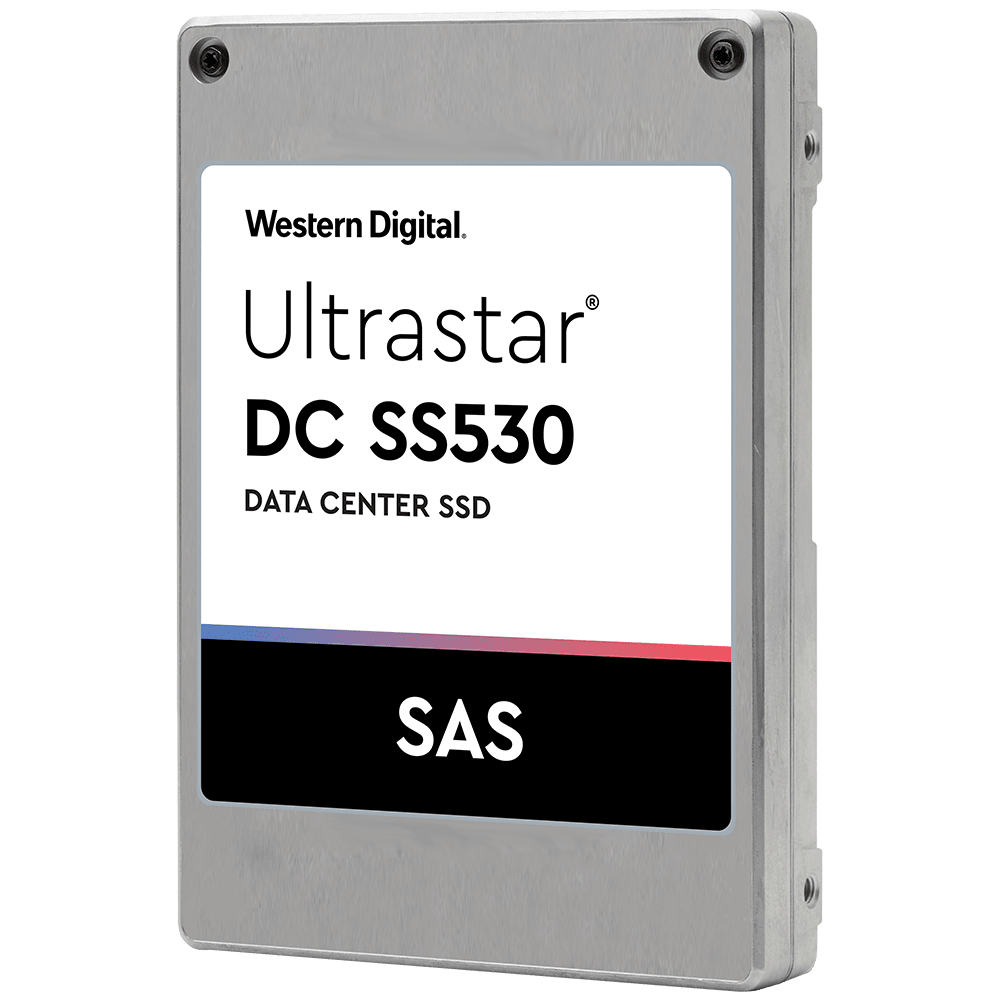

ultrastar-dc-ss530-left-western-digital

Maximum Capacity

Our newest SAS SSD delivers up to 15.36TB capacity, double the capacity of prior generations

Superior Performance

Delivers up to 440K random read and 320K random write IOPS

Range of Endurance

Three endurance options support a full range of data center applications and workloads

Ultrastar DC SS530
General
Interface
SAS 12 Gb/s
Form Factor
SFF 2.5-inch drive
Capacity1
10 DW/D: 3.2TB / 1.6TB / 800GB / 400GB
3 DW/D: 6.4TB / 3.2TB / 1.6TB / 800GB / 400GB
1 DW/D: 15.36TB / 7.68TB / 3.84TB / 1.92TB / 960GB / 480GB
Endurance (Drives writes per day, DW/D)2
10
3
1
Maximum Terabytes Written (TBW)
10 DW/D: 59,690 / 29,410 / 15,220 / 7,630
3 DW/D: 36,170 / 17,520 / 9,410 / 4,700 / 2,350
1 DW/D: 30,110 / 15,050 / 6,790 / 3,760 / 1,880 / 940
Flash Memory Technology
3D TLC NAND
Performance3
Sequential Write (max MiB/s, 128KiB)
2,120
Random Read (max IOPS, 4KiB)
440,000
Random Write (max IOPS, 4KiB)
10 DW/D: 320,000
3 DW/D: 240,000
1 DW/D: 100,000
Mixed Random Read/Write (max IOPS 70%R/30%W, 4KiB)
10 DW/D: 430,000
3 DW/D: 330,000
1 DW/D: 190,000
Read/Write Latency (μs, max)4
10 DW/D: 92/26
3 DW/D: 92/27
1 DW/D: 92/36
Reliability
Unrecoverable Bit Error Rate (UBER)
1 in 1017
MTBF (M hours)5
2.5
Annual Failure Rate (AFR)
0.35%
Availability (hrs/day x days/week)
24x7
Limited Warranty6
5 years
Power
Requirement
+5 VDC, +12VDC
Operating (W, typical)
9, 11, 14
Idle (W, average)
3.2
Physical Size
Z-Height (mm)
15
Dimensions (width x depth, mm)
70.1 x 100.45
Weight (g, max)
175
Environmental
Operating Temperature7
0º to 70º C
Non-operating Temperature
-40º to 85º C

Disclosures

1: One megabyte (MB) is equal to one million bytes, one gigabyte (GB) is equal to 1,000MB (one billion bytes), and one terabyte (TB) is equal to 1,000GB (one trillion bytes) when referring to storage capacity. Accessible capacity will vary from the stated capacity due to formatting, system software, and other factors.
2: Endurance rating based on DW/D using 4KiB random write workload over 5 years.
3: Performance will vary by capacity point, or with the changes in useable capacity. Consult product manual for further details. All performance measurements are in full sustained mode and are peak values. Preliminary and subject to change. 1MiB=1,048,576 bytes or 220, 1KiB= 1,024 bytes or 210.
4: Average Write Latency at 4KiB QD=1.
5: MTBF and AFR targets are based on a sample population and are estimated by statistical measurement and acceleration algorithms under median operating conditions. MTBF and AFR rating do not predict an individual drive’s reliability and do not constitute a warranty.
6: The warranty for the product will expire on the earlier of (i) the date when the flash media has reached one-percent (1%) of its remaining life or (ii) the expiration of the time period associated with the Product.
7: Internal drive temperature as measured via the drive's temperature sensor.

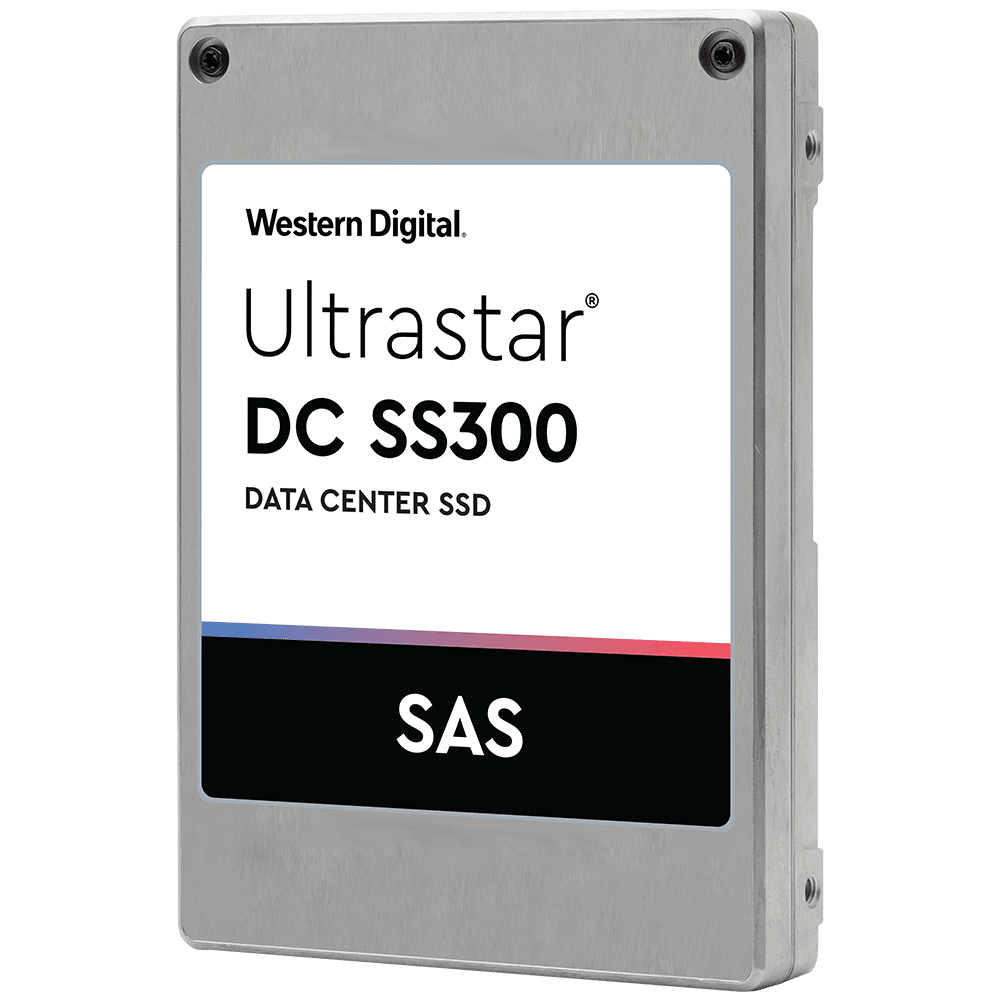

ultrastar-dc-ss300-left-western-digital

High Capacity

Up to 7.68TB capacity helps scale server and storage systems

High Performance

Delivers up to 440K random read and 320K random write IOPS

Range of Endurance

Three endurance options support a full range of data center applications and workloads

Ultrastar DC SS300
General
Interface
SAS 12 Gb/s
Form Factor
SFF 2.5-inch drive
Capacity1
10 DW/D: 3.2TB / 1.6TB / 800GB / 400GB
3 DW/D: 3.2TB / 1.6TB / 800GB / 400GB
~1 DW/D: 7.68TB / 3.84TB / 1.92TB / 960GB / 480GB
Endurance (Drives writes per day, DW/D)2
10
3
~1
Maximum Terabytes Written (TBW)
10 DW/D: 53,100 / 26,500 / 13,200 / 7,300
3 DW/D: 15,900 / 7,900 / 3,900 / 1,980
~1 DW/D: 13,100 / 6,600 / 3,150 / 1,900 / 960
Flash Memory Technology
10 DW/D: 3D MLC NAND
3 DW/D: 3D MLC NAND
~1 DW/D: 3D TLC NAND
Performance3
Sequential Read (max MiB/s, 128KiB)
2,100
Sequential Write (max MiB/s, 128KiB)
10 DW/D: 2,050
3 DW/D: 2,050
~1 DW/D: 1,250
Random Read (max IOPS, 4KiB)
400,000
Random Write (max IOPS, 4KiB)
10 DW/D: 200,000
3 DW/D: 170,000
~1 DW/D: 85,000
Mixed Random Read/Write (max IOPS 70%R/30%W, 4KiB)
10 DW/D: 285,000
3 DW/D: 265,000
~1 DW/D: 170,000
Read/Write Latency (μs, max)4
10 DW/D: 85
3 DW/D: 85
~1 DW/D: 105
Reliability
Unrecoverable Bit Error Rate (UBER)
1 in 1017
MTBF (M hours)5
2.5
Annual Failure Rate (AFR)
0.35%
Availability (hrs/day x days/week)
24x7
Limited Warranty6
5 years
Power
Requirement
+5 VDC, +12VDC
Operating (W, typical)
9, 11, 14
Idle (W, average)
< 3.2TB: 3.7
≥ 3.2TB: 4.7
Physical Size
Z-Height (mm)
15
Dimensions (width x depth, mm)
70.1 x 100.45
Weight (g, max)
140
Environmental
Operating Temperature7
0º to 75º C
Non-operating Temperature
-40º to 85º C

Disclosures

1: One megabyte (MB) is equal to one million bytes, one gigabyte (GB) is equal to 1,000MB (one billion bytes), and one terabyte (TB) is equal to 1,000GB (one trillion bytes) when referring to storage capacity. Accessible capacity will vary from the stated capacity due to formatting, system software, and other factors.
2: Endurance rating based on DW/D using 4KiB random write workload over 5 years.
3: Performance will vary by capacity point, or with the changes in useable capacity. Consult product manual for further details. All performance measurements are in full sustained mode and are peak values. Preliminary and subject to change. 1MiB=1,048,576 bytes or 220, 1KiB= 1,024 bytes or 210.
4: Average Write Latency at 4KiB QD=1.
5: MTBF and AFR targets are based on a sample population and are estimated by statistical measurement and acceleration algorithms under median operating conditions. MTBF and AFR rating do not predict an individual drive’s reliability and do not constitute a warranty.
6: The warranty for the product will expire on the earlier of (i) the date when the flash media has reached one-percent (1%) of its remaining life or (ii) the expiration of the time period associated with the Product.
7: Internal drive temperature as measured via the drive's temperature sensor.



ultrastar-dc-ss300-left-western-digital

High Capacity

Up to 7.68TB capacity helps scale server and storage systems

High Performance

Delivers up to 250K random read and 86K random IOPS

Range of Endurance

Two endurance options support mixed-use and read-intensive applications and workloads

Ultrastar DC SS200
General
Interface
SAS 12 Gb/s
Form Factor
2.5-inch drive
Capacity1
3 DW/D: 3.2TB / 1.6TB / 800GB / 400GB
1 DW/D: 7.68TB / 3.84TB / 1.92TB / 960GB / 480GB
Endurance (Drives writes per day, DW/D)2
3
1
Flash Memory Technology
15nm MLC NAND
Performance3
Sequential Read (max MiB/s, 128KiB)
1,800
Sequential Write (max MiB/s, 128KiB)
1,000
Random Read (max IOPS, 4KiB)
250,000
Random Write (max IOPS, 4KiB)
3 DW/D: 86,000
1 DW/D: 37,000
Mixed Random Read/Write (max IOPS 70%R/30%W, 4KiB)
3 DW/D: 154,000
1 DW/D: 90,000
Write Latency (μs)4
100
Reliability
Unrecoverable Bit Error Rate (UBER)
<1 in 1017
MTBF (M hours)5
2.5
Annual Failure Rate (AFR)
0.35%
Availability (hrs/day x days/week)
24x7
Limited Warranty6
5 years
Data Retention
3-month at 40°C
Power
Requirement
5V and 12V
Operating (W, typical)
9 or 11 (Configurable)
Idle (W, average)
3.8 to 4.3
Physical Size
Z-Height (mm)
15
Dimensions (width x depth, mm)
69.85 x 100.45
Weight (g, max)
200
Environmental
Operating Temperature7
0°C to 70°C (Case)
Non-operating Temperature
-40º to 85º C

Disclosures

1: One megabyte (MB) is equal to one million bytes, one gigabyte (GB) is equal to 1,000MB (one billion bytes), and one terabyte (TB) is equal to 1,000GB (one trillion bytes) when referring to storage capacity. Accessible capacity will vary from the stated capacity due to formatting, system software, and other factors.
2: Endurance rating based on DW/D using 4KiB random write workload over 5 years.
3: Performance will vary by capacity point, or with the changes in useable capacity. Consult product manual for further details. All performance measurements are in full sustained mode and are peak values. Preliminary and subject to change. 1MiB=1,048,576 bytes or 220, 1KiB= 1,024 bytes or 210.
4: Average Write Latency at 4KiB QD=1.
5: MTBF and AFR targets are based on a sample population and are estimated by statistical measurement and acceleration algorithms under median operating conditions. MTBF and AFR rating do not predict an individual drive’s reliability and do not constitute a warranty.
6: The warranty for the product will expire on the earlier of (i) the date when the flash media has reached one-percent (1%) of its remaining life or (ii) the expiration of the time period associated with the Product.
7: Internal drive temperature as measured via the drive's temperature sensor.



Highlights

  • Capacities from 400GB to 15.36TB
  • Reliable, proven dual port 12 Gb/s SAS interface supports high-availability storage environments
  • 3D MLC or TLC NAND Flash delivers performance and endurance
  • Three endurance options support range of data center workloads
  • Enterprise-class 2.5M hour MTBF reliability rating

Applications and Workload

  • Enterprise-class servers and high performance computing
  • Online Transaction Processing (OLTP)
  • Financial Transaction Systems
  • File Servers
  • Database Analytics.
  • Space and/or power-constrained environments
